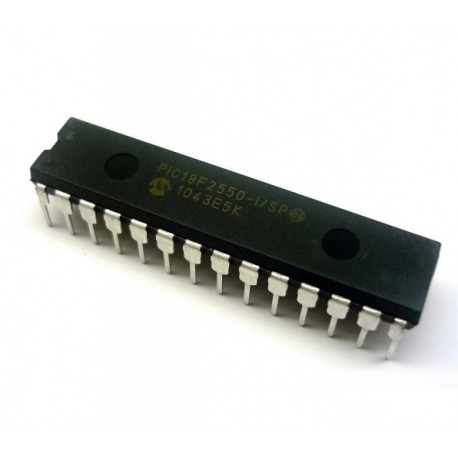

PIC 18F2550

PIC 18F2550


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /homepages/19/d776646349/htdocs/clickandbuilds/IDIElectronica/wp-content/plugins/woocommerce/templates/single-product/meta.php on line 26

Descripción del producto

Ideal for low power (nanoWatt) and connectivity applications that benefit from the availability of three serial ports: FS-USB (12 Mbit/s), I²C™ and SPI™ (up to 10Mbit/s) and an asynchronous (LIN capable) serial port (EUSART). Large amounts of RAM memory for buffering and Enhanced FLASH program memory make it ideal for embedded control and monitoring applications that require periodic connection with a (legacy free) Personal Computer via USB for data upload/download and/or firmware updates. While operating up to 48 MHz, the PIC18F2550 is also mostly software and hardware compatible with the PIC16C745 Low-Speed USB OTP devices. THE PICSTART® Plus does NOT currently support this device but may support it in the future.

Ficha técnica

Voltaje de Operación 4.2 V a 5.5V
Digital I/O pines 24
Analogo input pines 10
Memoria Flash 32 KB
RAM 2048 bytes
EEPROM 256 bytes
Total Pines 28
Frecuencia del Crystal 48 Mhz maximo
