Descripción del producto

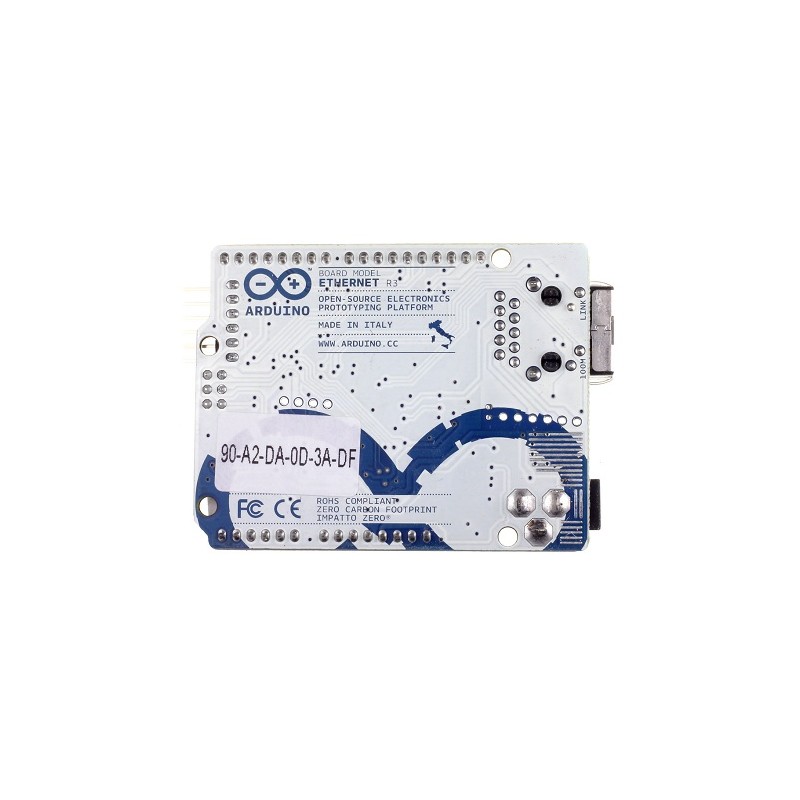

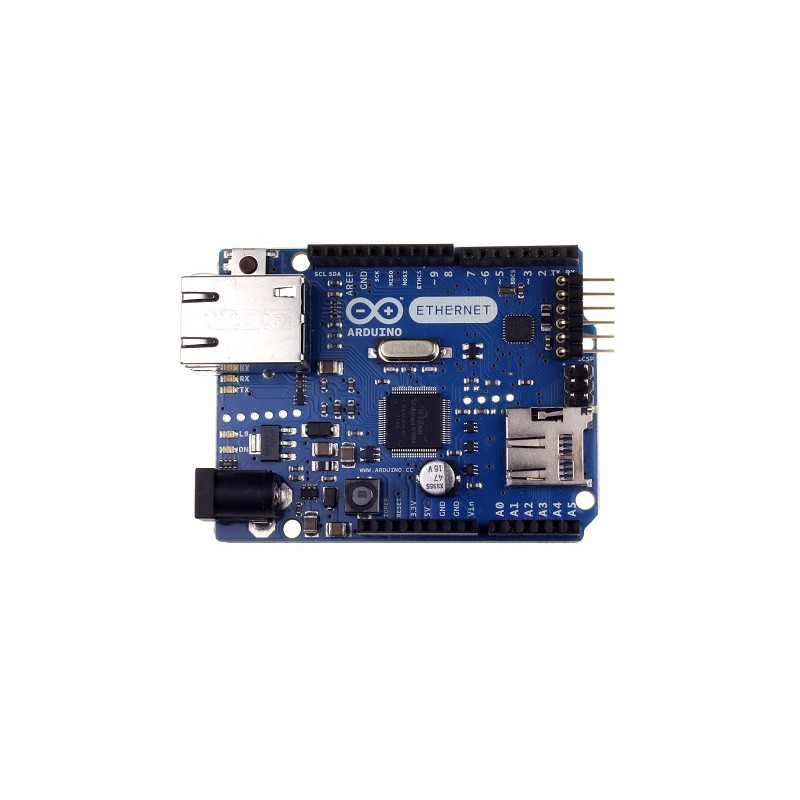

The Arduino Ethernet is a microcontroller board based on the Arduino Uno, and incorporating a WizNet W5100 TCP/IP Embedded Ethernet Controller. It can be programmed like an Uno via a six-pin FTDI -style serial connector. The Arduino USB-to-Serial adapter or any FTDI-style USB-to-serial connector can be used to program it.

A separate power-over-Ethernet (PoE) module can be soldered to the board to provide power from a conventional twisted pair Category 5 Ethernet cable. It is IEEE802.3af compliant, and works with all compliant PoE injectors currently available.

Compatible with PoE Module 12V (X000002).

Ficha técnica

Voltaje de Operación 5V DC
Microcontrolador ATmega 328
Voltaje de Entrada 7V a 12V(recomendado) / 6V a 20V(limite)
Voltaje Entrada POE 36V a 57V(limite)
Digital I/O pines 14 (of which 4 provide PWM output)
Analogo input pines 6
Corriente I/O pines 40 mA
Memoria Flash 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Pines Reservados 10 to 13 used for SPI ; 4 used for SD card ; 2 W5100 interrupt (when bridged)
Frecuencia del Crystal 16 Mhz
Otros W5100 TCP/IP Embedded Ethernet Controller ; Power Over Ethernet ready Magnetic Jack ; Micro SD card, with active voltage translators
