Arduino Yún
arduino-yun-2YunPartsBridgeInShortMódulo Ultrasónico HC-SR04

Arduino Yún


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /homepages/19/d776646349/htdocs/clickandbuilds/IDIElectronica/wp-content/plugins/woocommerce/templates/single-product/meta.php on line 26

Descripción del producto

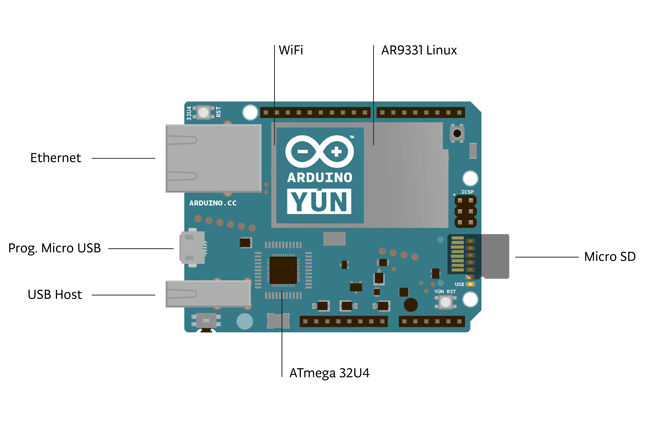

The Arduino Yún is a microcontroller board based on the ATmega32u4 and the Atheros AR9331. The Atheros processor supports a Linux distribution based on OpenWrt named OpenWrt-Yun. The board has built-in Ethernet and WiFi support, a USB-A port, micro-SD card slot, 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a 3 reset buttons.
NB : In some countries, it is prohibited to sell WiFi enabled devices without government approval. While waiting for proper certification, some local distributors are disabling WiFi functionality. Check with your dealer before purchasing a Yún if you believe you may live in such a country. If you wish to disable WiFi, run this sketch. For more information, refer to this forum post.

Ficha técnica

Voltaje de Operación 5V DC
Microcontrolador ATmega 32u4
Voltaje de Entrada 5V
Digital I/O pines 20 ( Pwm chanel 7 )
Analogo input pines 12
Corriente I/O pines 40 mA
Memoria Flash 32 KB (ATmega328) / 4 KB usado para bootloader
SRAM 2.5 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Linux Microprocesador Atheros AR9331
Frecuencia del Crystal 16 Mhz

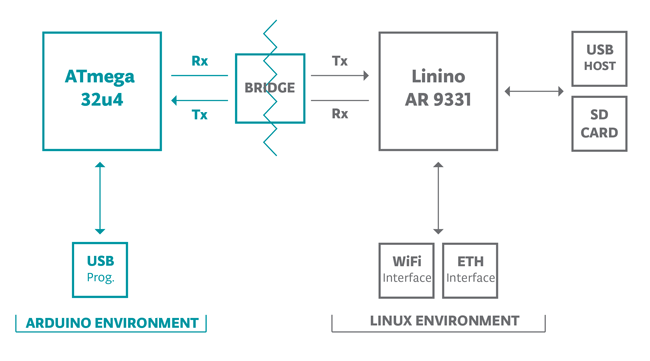

The Yún distinguishes itself from other Arduino boards in that it can communicate with the Linux distribution onboard, offering a powerful networked computer with the ease of Arduino. In addition to Linux commands like cURL, you can write your own shell and python scripts for robust interactions.

The Yún is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Yún to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
